CLASSIFICATION
PRODUCT MODEL:TS86-M3-N
TS86-M3-N
PRODUCT SPECIFICATION:
Rating:50mA 12VDC
Insulation Resistance:1GΩ Min (at 250 VDC)
Dielectric Strength:AC 250V (50/60 Hz for 1 minute)
Contact Resistance:100mΩ Max. (Initial)
Electrically Life:10,0000 Cycles Min
Ambient Temperature:-40℃~+125℃
Operating Force:400± 100gf
Total Travel:0.8±0.1mm
Insulation Resistance:1GΩ Min (at 250 VDC)
Dielectric Strength:AC 250V (50/60 Hz for 1 minute)
Contact Resistance:100mΩ Max. (Initial)
Electrically Life:10,0000 Cycles Min
Ambient Temperature:-40℃~+125℃
Operating Force:400± 100gf
Total Travel:0.8±0.1mm
Application：
Audio / Visual 音響/視聽設備Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備

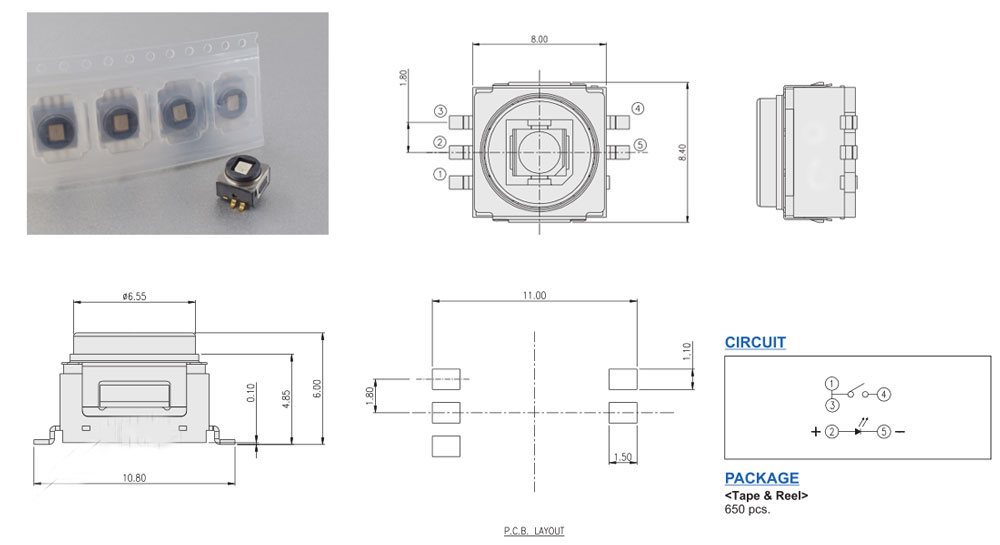

DRAWING
ORDER CODING DIAGRAM
