CLASSIFICATION
PRODUCT MODEL:PB09B-Z-210-P0L-BR-220
PB09B-Z-210-P0L-BR-220
PRODUCT SPECIFICATION:
Rating:10A 125V AC /6A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC500V 100mΩMin
withstand Voltage:1500VAC for 1 Minute
Operating Force:700±200gf
Travel:5.0±0.5mm
Life Cycle:10,000Cycles Min
Function:OFF-ON
Application：
? Communication equipment,通信設備
? wireless application equipment 無線設備
? Electronic tester 電子測試。
? Automation equipment 自動化設備
? Transaction Equipment 交通運輸設備
? Electronic equipment for people\’s livelihood

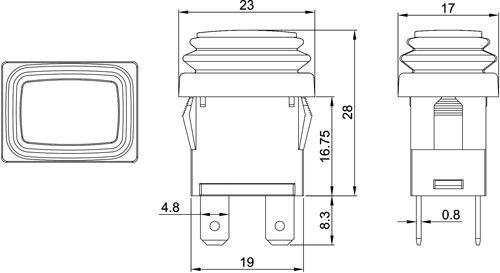

DRAWING

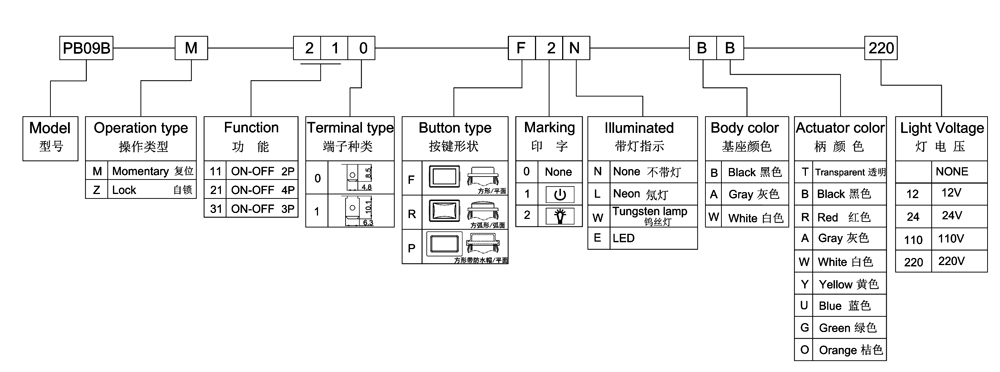

ORDER CODING DIAGRAM
