CLASSIFICATION
PRODUCT MODEL:TS27-1-TW-R-NN-S
TS27-1-TW-R-NN-S
PRODUCT SPECIFICATION:
Circuit :SPDT
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :100mΩ Max(intial )
Insulation Resistance :100MΩ Min.
Operating Force :250±50gf
Total Travel :0.4±0.1 5mm
Opearating lifte :200,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :- 20°C~+70°C
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :100mΩ Max(intial )
Insulation Resistance :100MΩ Min.
Operating Force :250±50gf
Total Travel :0.4±0.1 5mm
Opearating lifte :200,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :- 20°C~+70°C
Application：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備

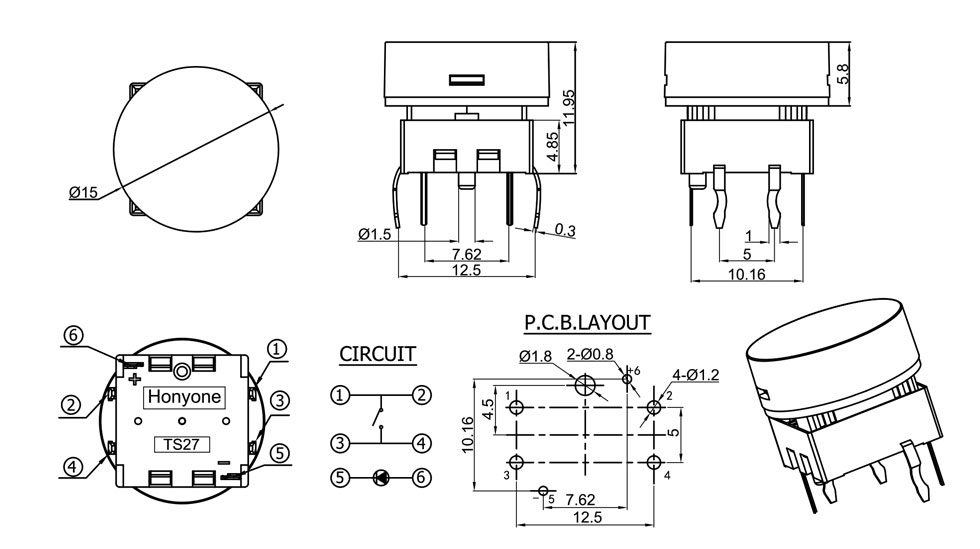

DRAWING
ORDER CODING DIAGRAM
