CLASSIFICATION
PRODUCT MODEL:PAM16-11Z-F-PNN-S0
PAM16-11Z-F-PNN-S0
PRODUCT SPECIFICATION:
SPECIFICATIONS
Rating: 10A 250VACmax;
Contact Resistance: 50mQ Max. ;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel:3±0.5mm ;
Operating Force:600±200gf ;
Mechanical Life:30,000 cycles ;
Load Life:10,000 cycles ;
Operating Temperation:-20°C~70°C;
Function:LOCK
Rating: 10A 250VACmax;
Contact Resistance: 50mQ Max. ;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel:3±0.5mm ;
Operating Force:600±200gf ;
Mechanical Life:30,000 cycles ;
Load Life:10,000 cycles ;
Operating Temperation:-20°C~70°C;
Function:LOCK
Application：
電子門鎖系統 Electronic lock system酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

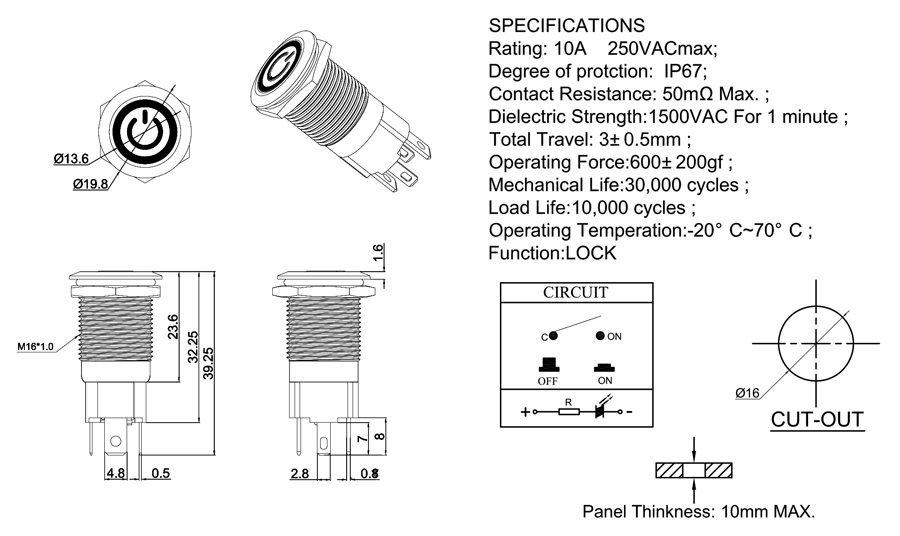

DRAWING
ORDER CODING DIAGRAM
