CLASSIFICATION
PRODUCT MODEL:PBS-小圓紅
PBS-小圓紅
PRODUCT SPECIFICATION:
Rating： 5A125VAC / 250VAC
Contact Resistance(CR)：≤100mΩ
Mechanical life：1,000,000
Electrical life：10,000
Insulation resistance(IR)：≥100MΩ DC500V
Dielectic votage-wothstand(WV)：AC1500V 1 minute
Operating temperature：-25℃~+85℃
Store humidity：<85% RH
Contact Resistance(CR)：≤100mΩ
Mechanical life：1,000,000
Electrical life：10,000
Insulation resistance(IR)：≥100MΩ DC500V
Dielectic votage-wothstand(WV)：AC1500V 1 minute
Operating temperature：-25℃~+85℃
Store humidity：<85% RH
Application：
Game Button Switch游戲機按鈕開關Parking equipment 停車場設備
Automatic control自動化控制
Machine tool Equipment 機床設備
Gas station Equipment 加油站設備
Vending machines 自動售貨機

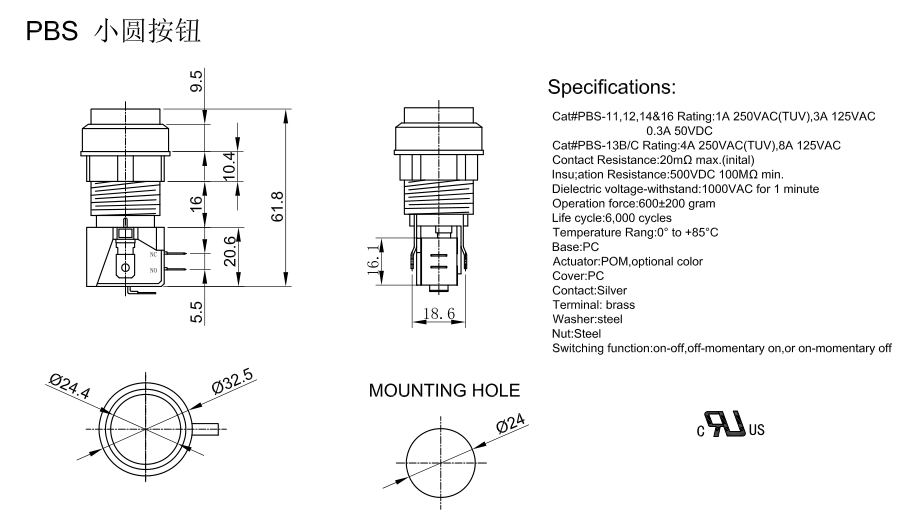

DRAWING
ORDER CODING DIAGRAM
