CLASSIFICATION
PRODUCT MODEL:LCD-A1 64 x32 pixels
LCD-A1 64 x32 pixels
PRODUCT SPECIFICATION:
Display condition self aligned reflective tape with built-in LED backlight
Visual field 14.5mmx11.8mm (horizontal X vertical)
Pixel format 64x32 pixels (horizontal X vertical)
Operating temperature range -15°C~+50°C (+5°F~+122°F)
Storage temperature range -20°C~+60°C (-4°F~+140°F)
Backlight LED RGB: red/green/blue
Circuit SPST is normally on
Electrical capacity: 100mA@12VDC
The maximum contact resistance is 200 milliohms @20mV 10mA
Insulation resistance minimum 100 megohm @100VDC
Visual field 14.5mmx11.8mm (horizontal X vertical)
Pixel format 64x32 pixels (horizontal X vertical)
Operating temperature range -15°C~+50°C (+5°F~+122°F)
Storage temperature range -20°C~+60°C (-4°F~+140°F)
Backlight LED RGB: red/green/blue
Circuit SPST is normally on
Electrical capacity: 100mA@12VDC
The maximum contact resistance is 200 milliohms @20mV 10mA
Insulation resistance minimum 100 megohm @100VDC
Application：
Industrial control, medical, broadcasting, telecommunications, military,Measuring instrument
Main Features:
High definition, contrast,
Operating life of more than 50,000 hours
Thin border, achieve full - screen display
With bitmap display function
Low energy consumption, dustproof, long life
Epoxy resin seals PC terminals

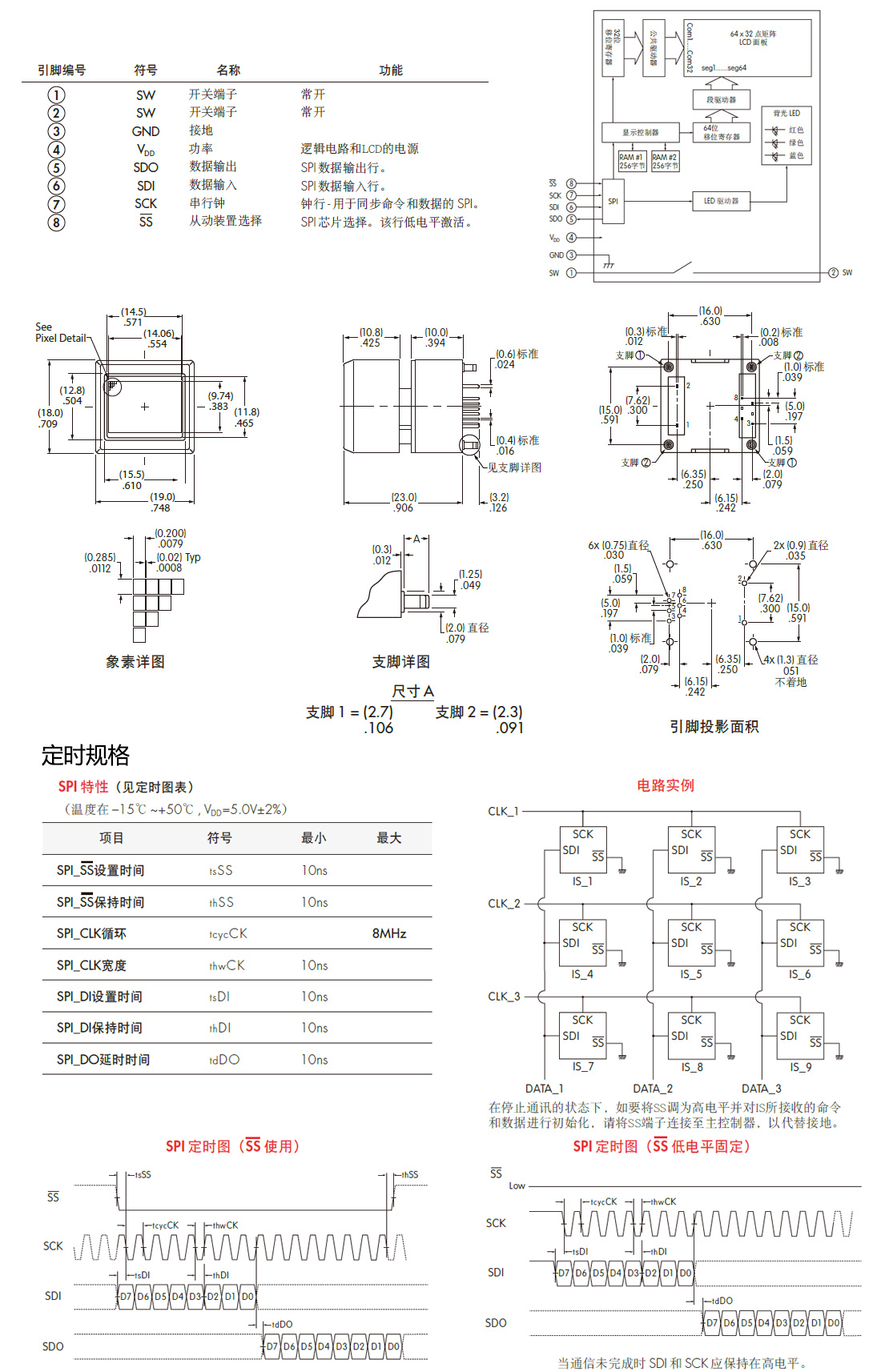

DRAWING
ORDER CODING DIAGRAM
