CLASSIFICATION
PRODUCT MODEL:LCD-U-A3 64 x32 pixels
LCD-U-A3 64 x32 pixels
PRODUCT SPECIFICATION:
Visual field 14.4mmx11.8mm (horizontal X vertical)
Pixel format 64x32 pixels (horizontal X vertical)
Pixel size 0.200mmx0.285mm (horizontal X vertical)
Operating temperature range -15°C~+50°C (+5°F~+122°F)
Storage temperature range -20°C~+60°F (-4°F~+140°F)
Backlight LED RGB: red/green/blue
Circuit SPST is normally on
Electrical capacity: 100mA@12VDC
The maximum shock resistance is 200 milliohms @20mV 10mA
Insulation resistance minimum 100 milliohms @100VDC
Total 4.5 mm
Pixel format 64x32 pixels (horizontal X vertical)
Pixel size 0.200mmx0.285mm (horizontal X vertical)
Operating temperature range -15°C~+50°C (+5°F~+122°F)
Storage temperature range -20°C~+60°F (-4°F~+140°F)
Backlight LED RGB: red/green/blue
Circuit SPST is normally on
Electrical capacity: 100mA@12VDC
The maximum shock resistance is 200 milliohms @20mV 10mA
Insulation resistance minimum 100 milliohms @100VDC
Total 4.5 mm
Application：
Industrial control, medical, broadcasting, telecommunications, military,Measuring instrument
Main Features:
High definition, contrast,
64 color backlight can be dynamically controlled
Manipulation of commands and data communicated through the SPI
With bitmap display function
Low energy consumption, dustproof, long life
Epoxy resin seals PC terminals
The embedded bracket is securely mounted and aligned

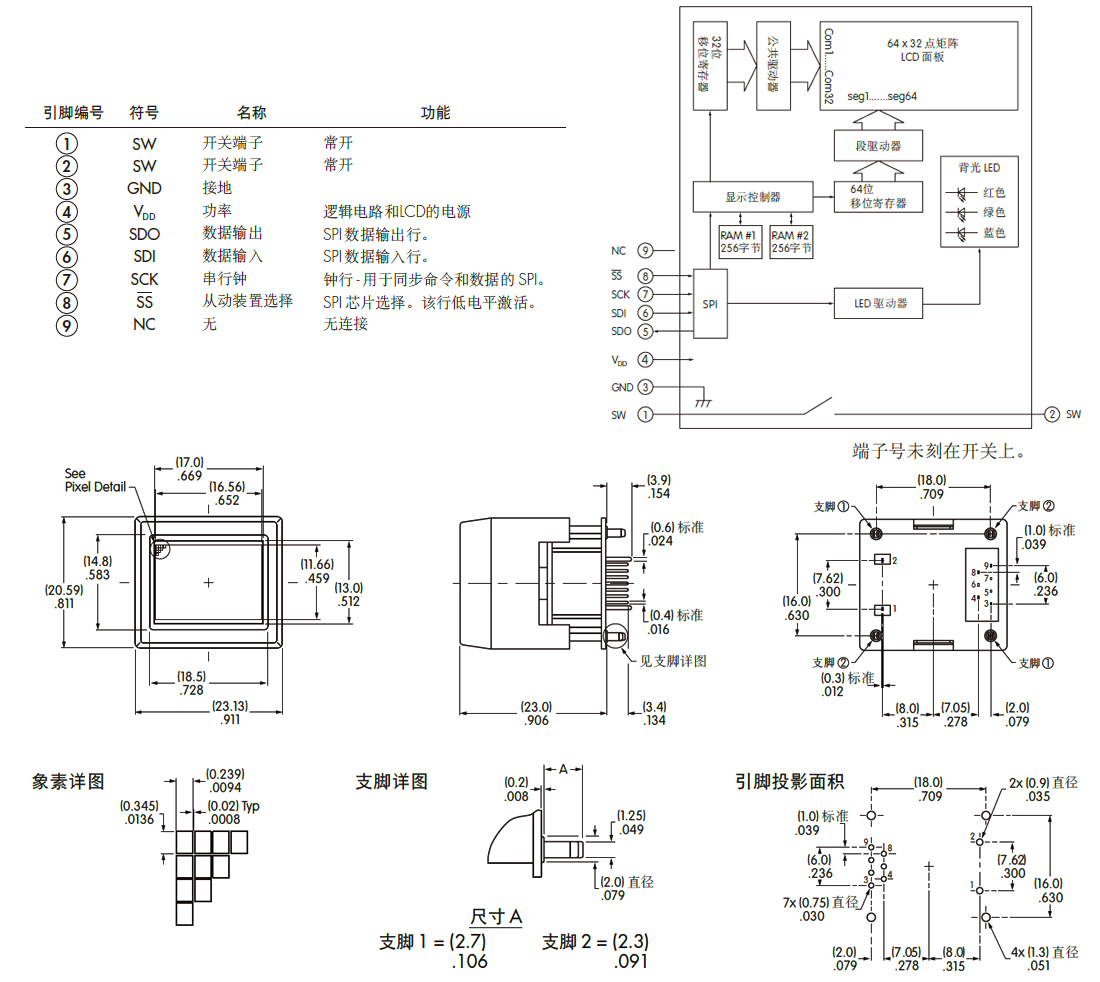

DRAWING
ORDER CODING DIAGRAM
