CLASSIFICATION
PRODUCT MODEL:PB25-21Z-Z-FS-NN
PB25-21Z-Z-FS-NN
PRODUCT SPECIFICATION:
RATING:ULC-UL:16125VAC T105
1/2HP 125VAC 3/4HP 250VAC
ENEC:16(6)/250VAC 1E4 T125/55
10(4)/250VAC5E4
CIRCUIT:ON-OFF DPST 4P VOLTAGE:220VAC
CONTACT RESISTANCE:30m OHMS Max
INSULATION RESISTANCE:DC500V 100M OHMS Min
WITHSTAND VOLTAGE:AC 1500V 1 Minute
ELECTRICAL LIFE:10000 Cycles at Full Load
OPERATIONFORCE:1000~1500gf
OPERATION TEMPERATURE RANGE:-25~+125°C
1/2HP 125VAC 3/4HP 250VAC
ENEC:16(6)/250VAC 1E4 T125/55
10(4)/250VAC5E4
CIRCUIT:ON-OFF DPST 4P VOLTAGE:220VAC
CONTACT RESISTANCE:30m OHMS Max
INSULATION RESISTANCE:DC500V 100M OHMS Min
WITHSTAND VOLTAGE:AC 1500V 1 Minute
ELECTRICAL LIFE:10000 Cycles at Full Load
OPERATIONFORCE:1000~1500gf
OPERATION TEMPERATURE RANGE:-25~+125°C
Application：
? 通信設備? 無線設備? 民用電子設備
? 自動化設備? 交通運輸設備? 電子測試。
產品詞：
按鍵開關，帶燈按鍵開關，
帶燈按鈕開關，復位按鈕開關，
復位按鍵開關，自鎖按鈕開關

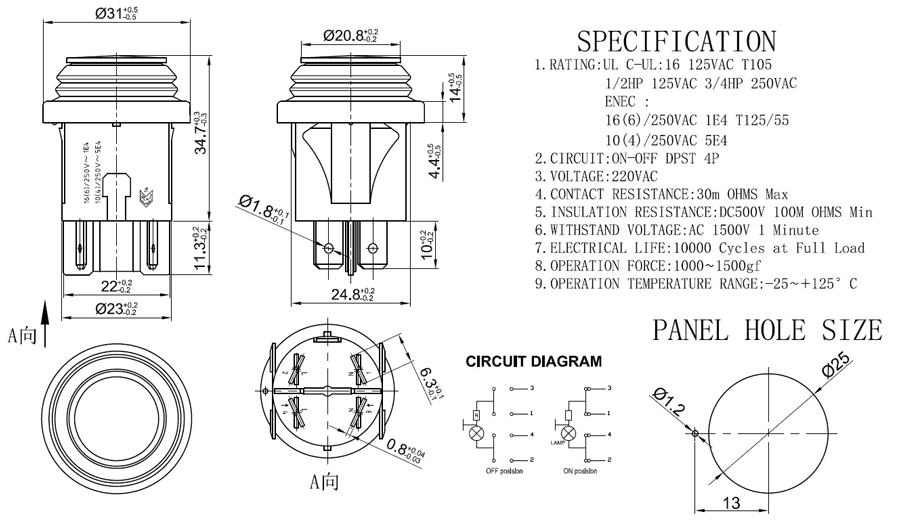

DRAWING
ORDER CODING DIAGRAM
