CLASSIFICATION
PRODUCT MODEL:PB26-13A-E-WU-RU-423
PB26-13A-E-WU-RU-423
PRODUCT SPECIFICATION:
Circuit :ON-OFF SPDT DPDT
Rating :0.4VA/28VAC
Dielectric voltage :500VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :DC500V 100MΩMin
Operating Force :200±100gf
Total Travel :2.2±0.5mm
Opearating life :2,00,000 Cycles Min
Soldear Specifications :350°C for 5 Seconds
Openrating Temperature :-25°C~+70C
Rating :0.4VA/28VAC
Dielectric voltage :500VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :DC500V 100MΩMin
Operating Force :200±100gf
Total Travel :2.2±0.5mm
Opearating life :2,00,000 Cycles Min
Soldear Specifications :350°C for 5 Seconds
Openrating Temperature :-25°C~+70C
Application：
Video processor 視頻處理器
Security Monitoring Equipment
安防監(jiān)控設備
Teaching recording and broadcasting equipment
教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備

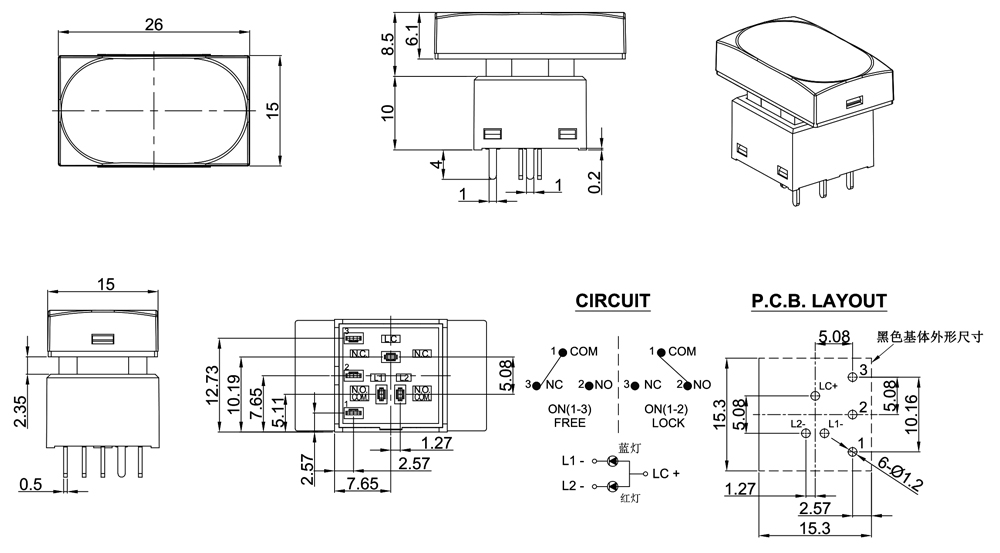

DRAWING
ORDER CODING DIAGRAM
