CLASSIFICATION
PRODUCT MODEL:PB66-B1-B-T-NR-2
PB66-B1-B-T-NR-2
PRODUCT SPECIFICATION:
Circuit :SPDT
Current Rating :12mA
Voltage Rating :24VDC
Contact Resistance :50mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Operating Force :170±50gf
Total Travel :2.0±0.4mm
Opearating life :500,000 cycles
Soldear Specifications :350°C for 3 Seconds
Function :Momentary
Openrating Temperature:-20°C~ +70°C
Current Rating :12mA
Voltage Rating :24VDC
Contact Resistance :50mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Operating Force :170±50gf
Total Travel :2.0±0.4mm
Opearating life :500,000 cycles
Soldear Specifications :350°C for 3 Seconds
Function :Momentary
Openrating Temperature:-20°C~ +70°C
Application：
Stage Lighting control equipment
舞臺(tái)燈光控制設(shè)備
Video processor 視頻處理器
Matrix Controller 矩陣控制器
Security equipment 安防設(shè)備
Cashier Equipment 收銀設(shè)備

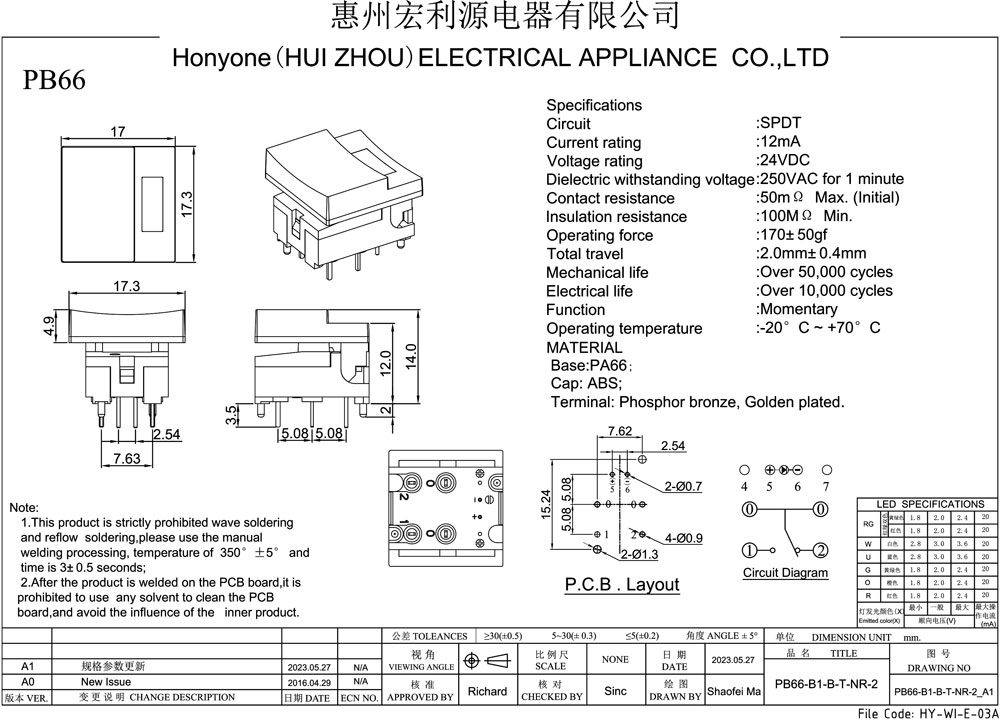

DRAWING
ORDER CODING DIAGRAM
