CLASSIFICATION
PRODUCT MODEL:PB11A-11M-RB-RBN-P
PB11A-11M-RB-RBN-P
PRODUCT SPECIFICATION:
Switching Voltage min. 100 mVAC/DC , max.
48 VAC /48 VDC
Switching current max. 200 mALifetime Over 10,0000 cycles
Capacity 1.2 W
Contact Resistance < 20 mΩ< 25 mΩ after lifetime
Insulation Resistance > 10\’000 MΩ
Actuating Force 1.2 ± 0.6 N
Actuating Travel 1.3 ± 0.5 mm
Application：
Audio/video, information and communication technology equipment - Part
1: Safety requirements
1: Safety requirements

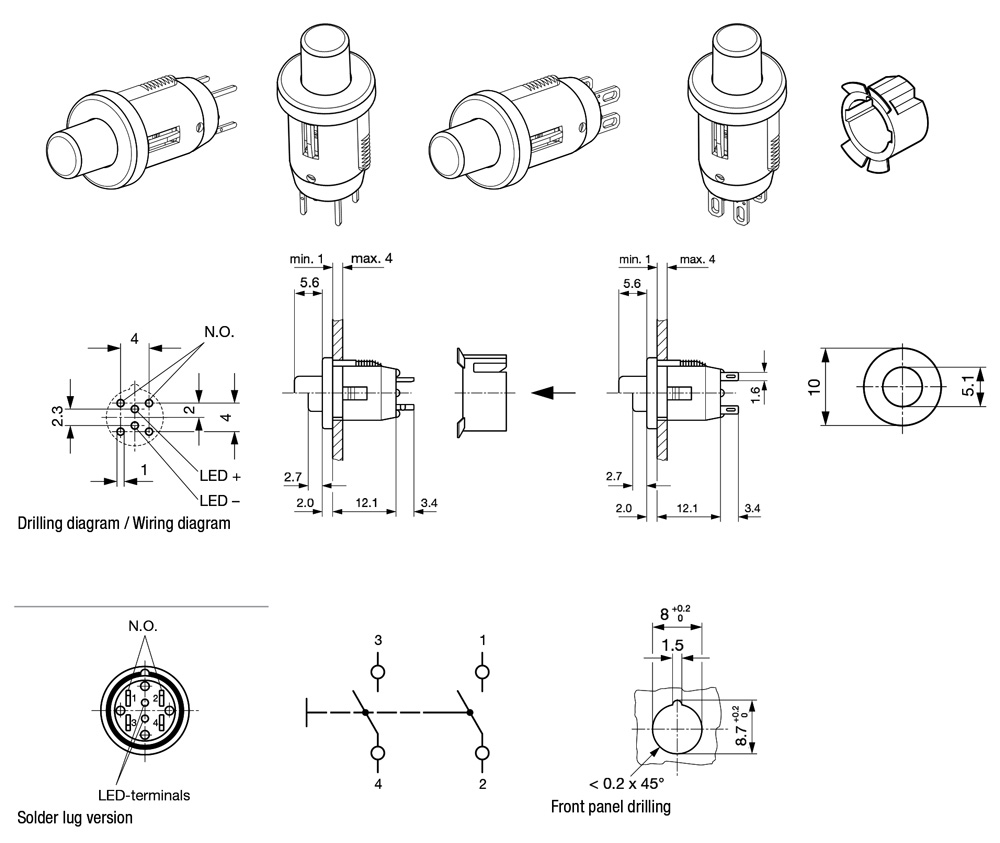

DRAWING
ORDER CODING DIAGRAM
