CLASSIFICATION
PRODUCT MODEL:PB04-A-G(lock)
PB04-A-G(lock)
PRODUCT SPECIFICATION:
Rating:3A 125V AC 1.5A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC500V 100MΩ Min.
withstand Voltage:1000VAC for 1 Minute
Operating Force:300±100gf
Travel:2.5±0.4mm
Life Cycle:50,000Cycles
Operating Temperation:-20℃~85℃
Function:(ON)-OFF (OFF)-ON ON-OFF
Application：
Lighting Fixtures 照明燈具
Automated production 自動化生產(chǎn)
Instruments and meters 儀器儀表
Professional Audio 專業(yè)音響
Testing equipment 檢測設(shè)備
Electrical toys 電動玩具
Testing equipment 檢測設(shè)備
Electrical toys 電動玩具

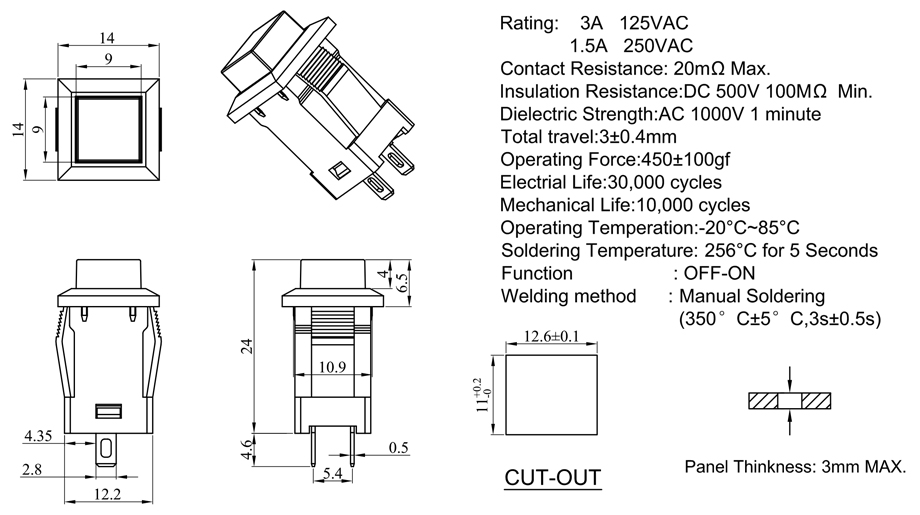

DRAWING
ORDER CODING DIAGRAM
