CLASSIFICATION
PRODUCT MODEL:PBM16-11M-F-PU3-S0
PBM16-11M-F-PU3-S0
PRODUCT SPECIFICATION:
Rating:3A 250VAC;:2A 36VDC;
Degree of protction:IP65;
Contact Resistance:50mΩ Max;
Dielectric Stength:1500VAC For 1 minute;
Total Travel:1.5±0.5mm
Opearating Force:450±150gf
Mechanical Life:200,000 cycles;
Load Life:50,000 cycles;
Openrating Temperature:-20℃~+85℃
Function:OFF-(ON) ON-OFF
Application：
電子門鎖系統 Electronic lock system
酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

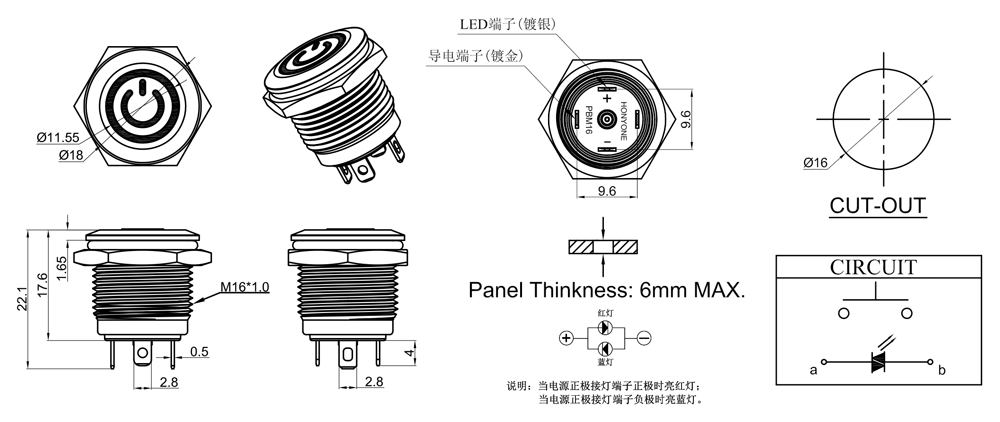

DRAWING
ORDER CODING DIAGRAM
