CLASSIFICATION
PRODUCT MODEL:MR-1-110-C5N-BB
MR-1-110-C5N-BB
PRODUCT SPECIFICATION:
Rating:12A 125VAC ( UL CUL)
10A 250VAC (VDE CQC ENEC)
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Mechandcal Life:Over30,000 Cycles
Electrcal Life:Over 10,000 cycles
Operating Temperature:-20°C~85°C
Safety Approval
Application：
Computer Peripherals 電腦外設(shè)
Telecommunications network 電信網(wǎng)絡(luò)
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業(yè)自動化

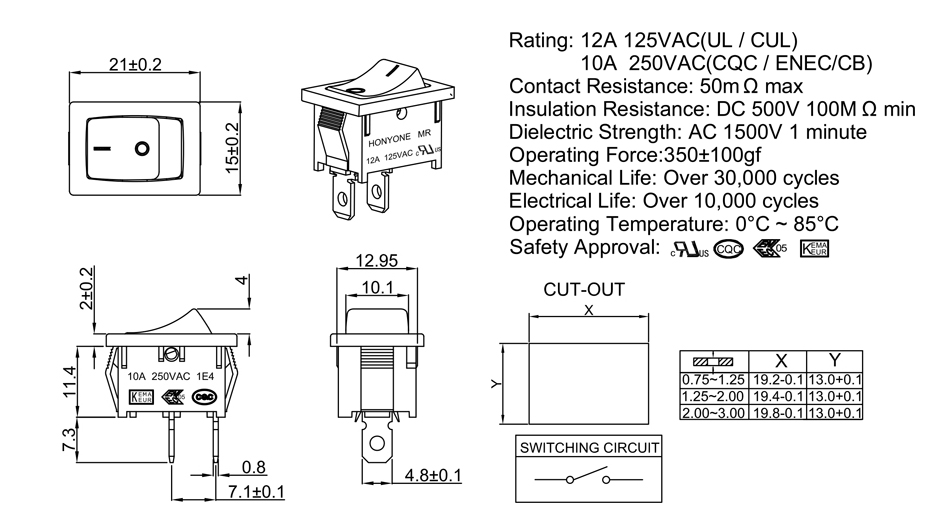

DRAWING
ORDER CODING DIAGRAM
