CLASSIFICATION
PRODUCT MODEL:R-4-210-C5L-BG-防水帽
R-4-210-C5L-BG-防水帽
PRODUCT SPECIFICATION:
Rating:20A 125V AC
22A 250V AC(ENEC CB CQC)
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Operating Force:350±150gf
Mechanical Life:Over 30,000cycles
Electrcal Life:Over10,000 Cycles
Operating Temperature:-20°C~+85°C
Safety Approval
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化

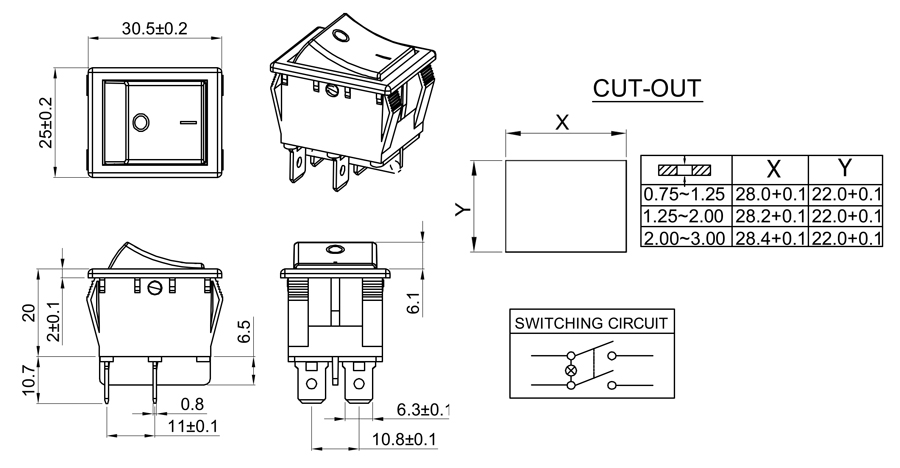

DRAWING
ORDER CODING DIAGRAM
