CLASSIFICATION
PRODUCT MODEL:R-1-110-R5L-BG Waterproof
R-1-110-R5L-BG Waterproof
PRODUCT SPECIFICATION:
Rating: 20A 125V AC
16A 250V AC
Contact Resistance: 100mΩ Max
Insulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 250±100gf
Electrical Life: Over 10,000 cycles
Operating Temperature: 0℃~+85℃
16A 250V AC
Contact Resistance: 100mΩ Max
Insulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 250±100gf
Electrical Life: Over 10,000 cycles
Operating Temperature: 0℃~+85℃
Funtion
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化
DRAWING

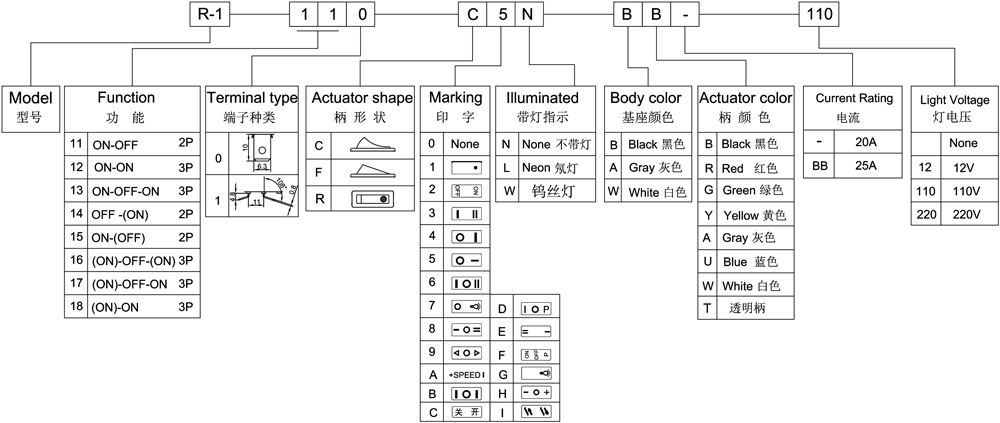

ORDER CODING DIAGRAM
