CLASSIFICATION
PRODUCT MODEL:PB13-A4-U
PB13-A4-U
PRODUCT SPECIFICATION:
Rating:0.5A 30VDC 0.25A 50VAC
Contact Resistance:50mΩ Max
Insulation Resistance:100MΩ Min.
withstand Voltage:1000VAC for 1 Minute
Operating Force:300±100gf or 400±100gf
Travel:1.0±0.25mm
Life Cycle:100,000Cycles
Function:Momentary
Operating Temperature:256℃ for 5 Seconds
Application：
APPLICATIONS/MARKETS 應用市場
Telecommunications 電信設備
Networking 網絡通信
Computers/servers 電腦服務器
Performance audio 專業音響
Instrumentation 儀器儀表
Low power on/off designs 低電流開關設備
External hard drives and modems 移動硬盤與光貓

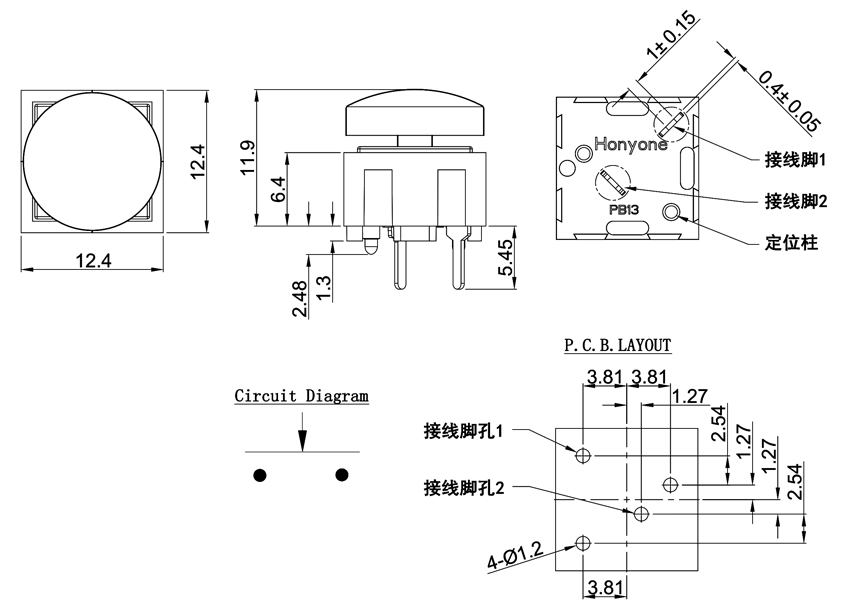

DRAWING
ORDER CODING DIAGRAM
