Pin connection 3+3, center C-contact
Perm. ambient temperature -50...+125°C
Torque 1,2Ncm ±0,2
Mech. lifetime min. 25 000 steps
Positions/rotation 10
Operating voltage ≤42V
Test voltage 250V 50Hz/1min
Contact resistance <80mW
Reflow soldering max. 10s/260°C
應(yīng)用領(lǐng)域：

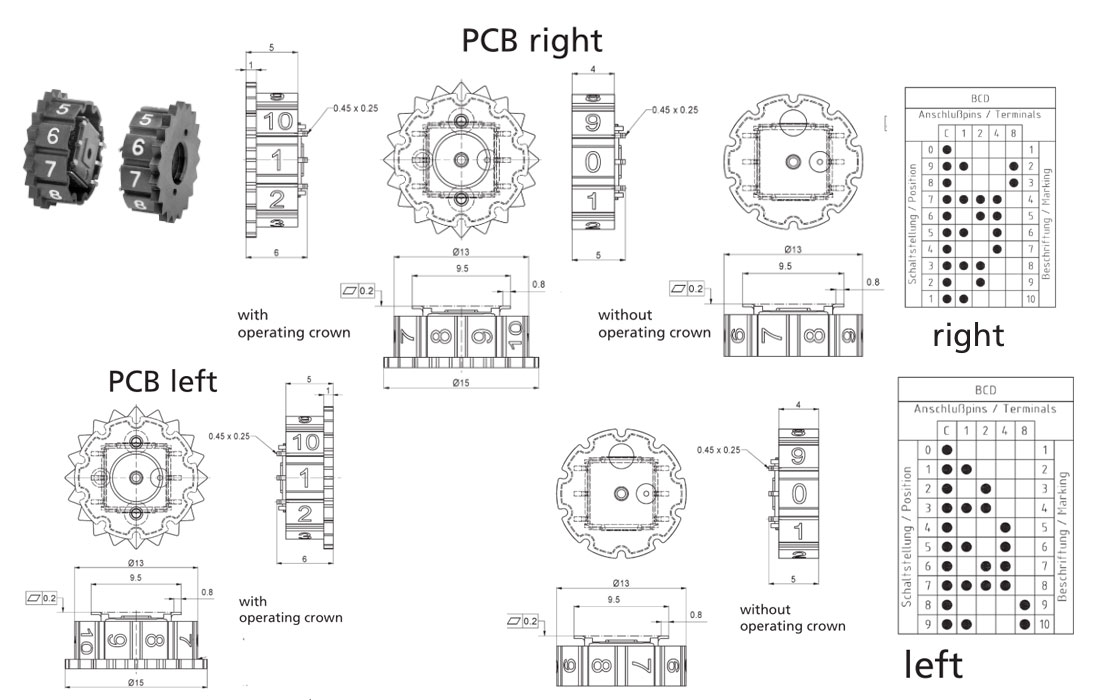

Thumb wheel switch with or without operating crown
w For right or left hand side PCBs
w Diameter 13mm
w Width 6mm
w SMT-Pins
w More Versions on request
