產(chǎn)品型號：TS3-00RGB-5P-0N 三色RGB燈
TS3-00RGB-5P-0N 三色RGB燈

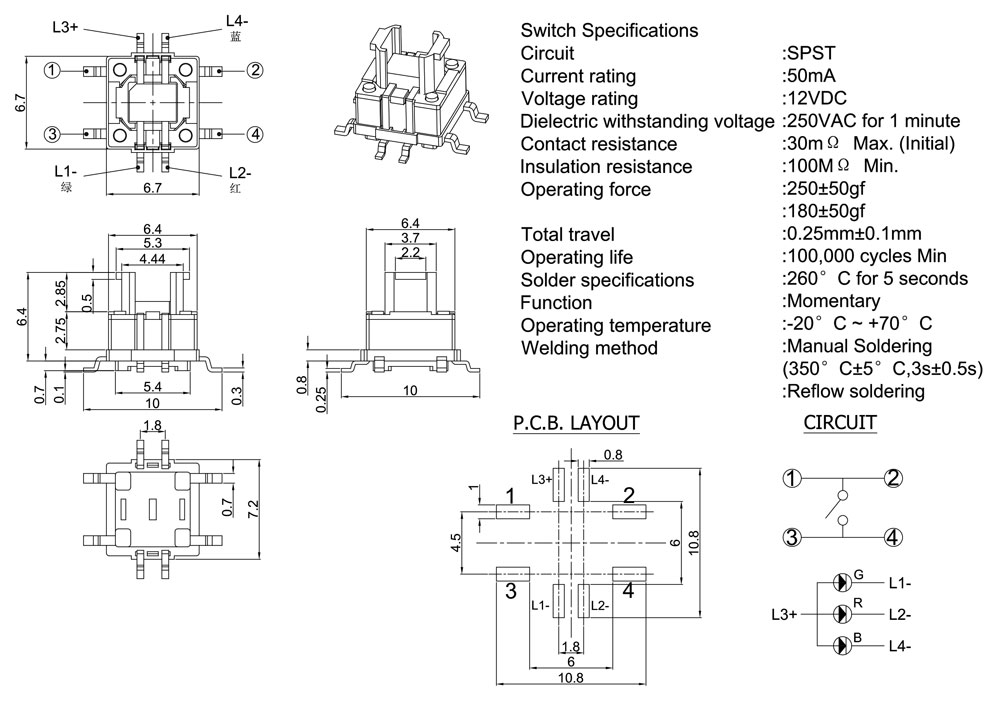

產(chǎn)品規(guī)格：
Circuit :SPST
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :30mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :180±50gf or 250+50gf
Total Travel :0.25±0.1mm
Opearating lite :100,000 Cycles Min
Soldear Specifications :260°C for 3 Seconds
Function :Momentary
Openrating Temperature :-20°C~+ 70°C
應用領域：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫(yī)療設備
