產品型號：KS12-GO1.5-WWN-6/12N-S
KS12-GO1.5-WWN-6/12N-S

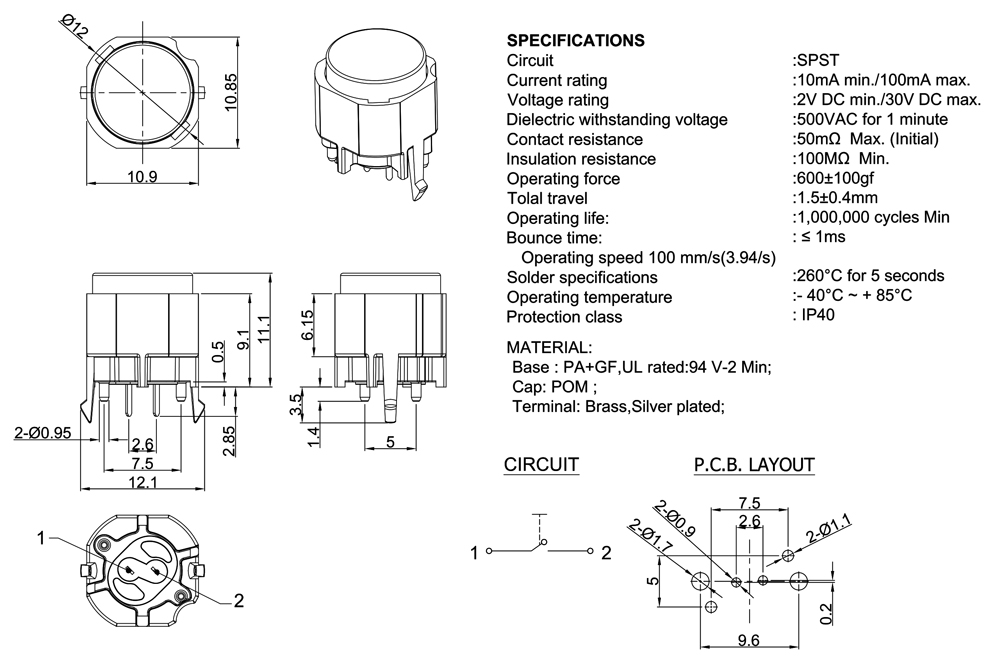

產品規格：
Circuit:SPST
Current rating:10mA min./100mA max.
Voltage rating:2V DC min ./30V DC max.
Dielectric withstanding voltage:500VAC for 1 minute
Contact resistance:50mΩ Max. (Initial)
Insulation resistance:100MΩ Min.
Operating force:600±100gf
Tolal travel:1.5±0.4mm
Operating life::1,000,000 cycles Min
Bounce time::≤1ms
Operating speed 100 mm/s(3.94/s)
Solder specifications:260°C for 5 seconds
Operating temperature:-40°C~ + 85°C
Protection class: IP40
應用領域：
? Electronic handle 電控手柄
? Off-road transportation 戶外交通運輸
? Joysticks 操縱桿
? Typically used in cranes 起重機
? Construction equipment 建筑工程機械
? Agricultural equipment 農業設備
? Mining,equipment. 采礦設備
? Computers & network equipment
電腦周邊設備
