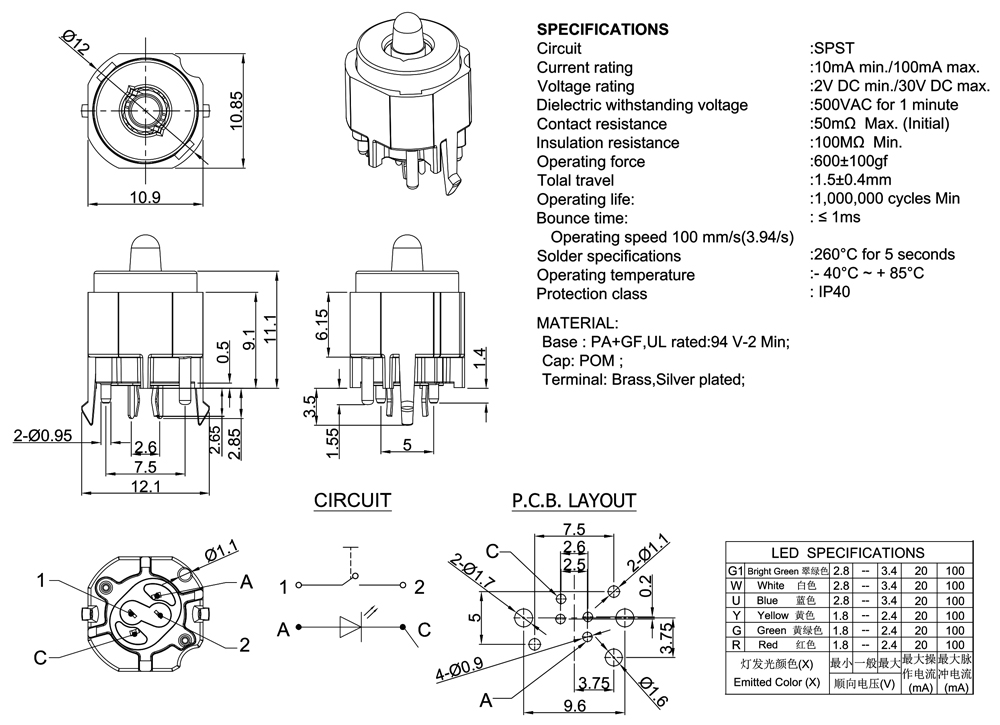

產(chǎn)品規(guī)格：
Circuit:SPST
Current rating:10mA min./100mA max.
Voltage rating:2V DC min ./30V DC max.
Dielectric withstanding voltage:500VAC for 1 minute
Contact resistance:50mΩ Max. (Initial)
Insulation resistance:100MΩ Min.
Operating force:600±100gf
Tolal travel:1.5±0.4mm
Operating life::1,000,000 cycles Min
Bounce time::≤1ms
Operating speed 100 mm/s(3.94/s)
Solder specifications:260°C for 5 seconds
Operating temperature:-40°C~ + 85°C
Protection class: IP40
