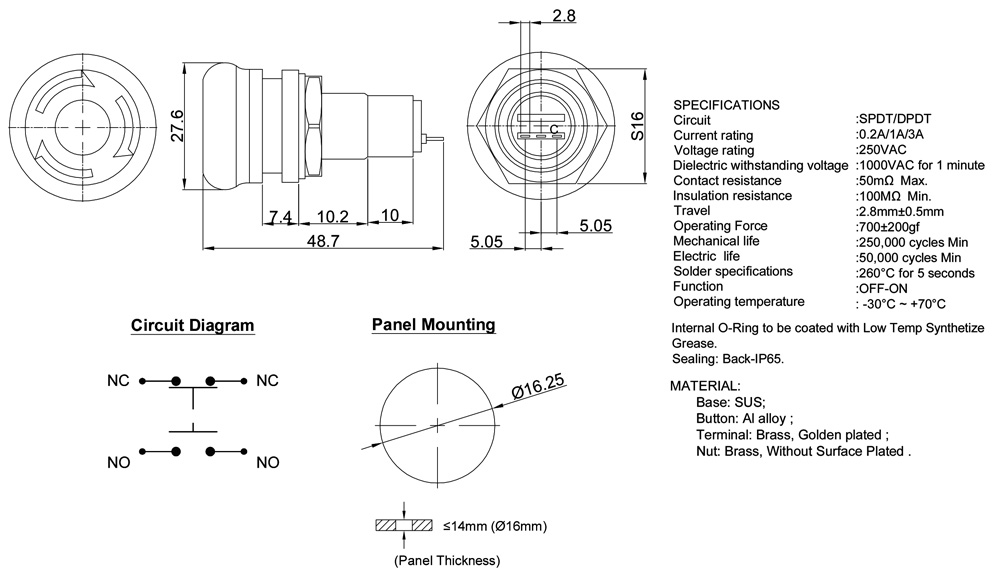

Circuit:SPDT/DPDT
Current rating:0.2A/1A/3A
Voltage rating:250VAC
Dielectric withstanding voltage : 1000VAC for 1 minute
Contact resistance:50mΩ Max.
lnsulation resistance:100MΩ Min.
Travel:2.8mm±0.5mm
Operating Force:700±200gf
Mechanical life:250,000 cycles Min
Electric life:50,000 cycles Min
Solder specifications:260°C for 5 seconds
Function:OFF-ON
Operating temperature:-30°C~+70°℃
lnternal O-Ring to be coated with Low Temp SynthetizeGrease.
Sealing: Back-IP65.
