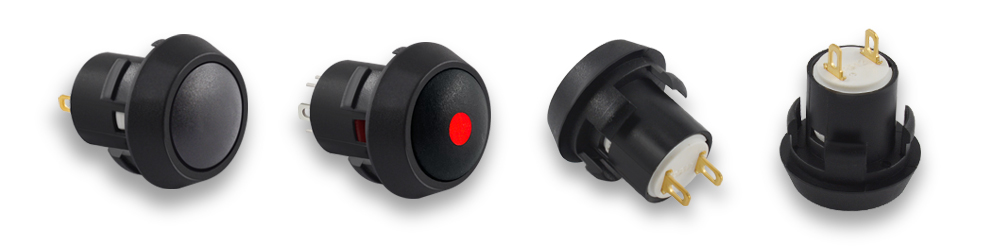

產品型號：PB12B-1-M-1B-N-N
PB12B-1-M-1B-N-N
產品規格：
SPECIFICATIONS
Circuit :SPST
Current rating :0.2A
Voltage rating :250VAC
Dieletric withstanding voltage:1000VAC for 1 minute
Contact resistance :50mΩ Max
Inslation resistance :100MΩ Min
Travel :2.0mm±0.5mm
Operating Force :500±150gf
Mechanical Life :Over 200,000 cycles
Electrical Life :Over 30,000 cycles
Manual Welding :350°C for 3 seconds
Function :Momentary
Operating temperature : -20°C~+85°C
Level of protection :IP67
應用領域：
? Shorter switch body
? Watertight to IP68S and IP69K, moistureproof IP64
? Tall & dome style buttons permitting printed legends
? Logic level option
? Quick disconnect terminals
? 5/8” thread, press fit & dome case options
? RoHS compliant
