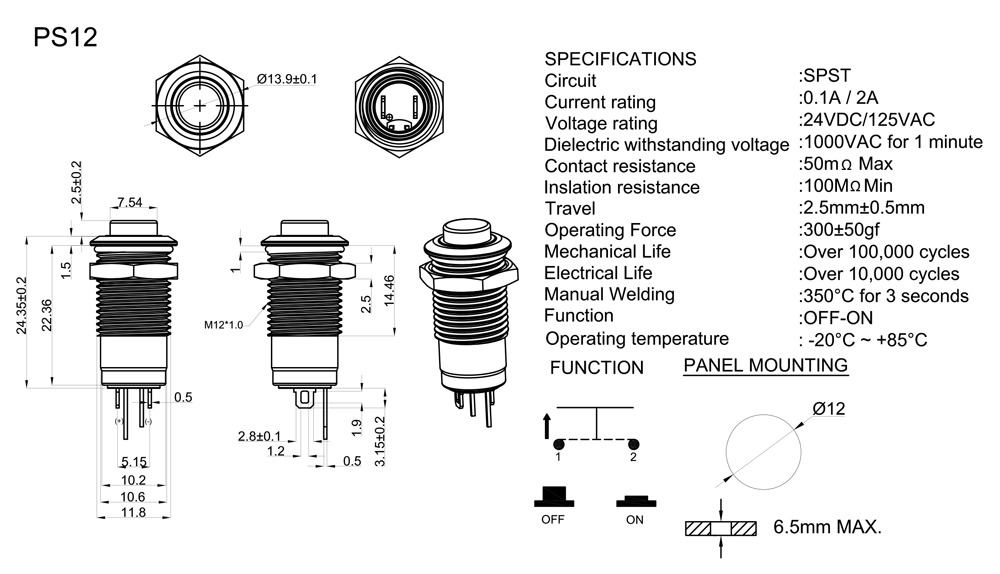

Circuit :SPST
Current rating :0.1A/ 2A
Voltage rating :24VDC/125VAC
Dielectric withstanding voltage:1000VAC for 1 minute
Contact resistance :50mΩ Max
lnslation resistance :100MΩ Min
Full Travel :2.5mm±0.5mm Lock Travel :1.5mm±0.5mm
Operating Force :300±100gf
Mechanical Life :Over 1,000,000 cycles
Electrical Life :Over 100,000 cycles
Manual Welding :350°C for 3 seconds Function:OFF-ON
Operating temperature :-20°C~+85℃
Level of protection :lP65
